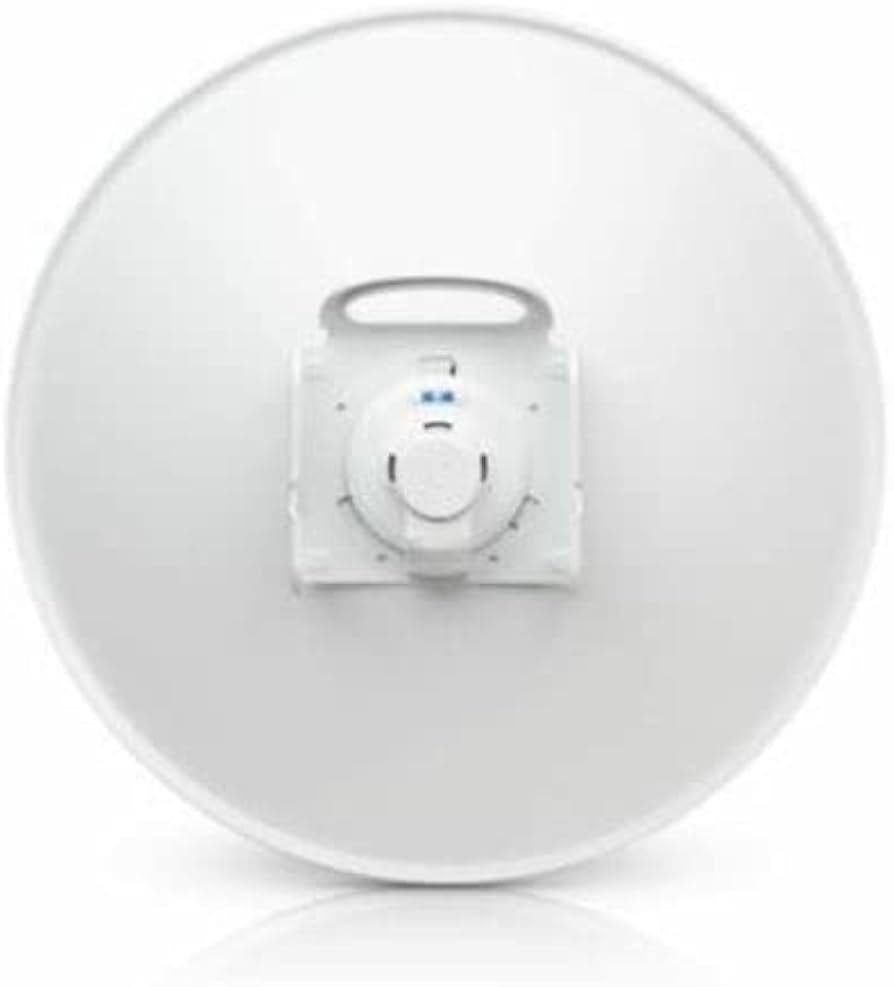

Ubiquiti PowerBeam M2 PBE-M2-400 Wireless Bridge – High-Performance 2.4GHz Wireless CPE

The Ubiquiti PowerBeam M2 (PBE-M2-400) is a high-performance 2.4GHz wireless bridge designed for efficient point-to-point wireless connections. Operating in the 2.4GHz frequency range with 18dBi gain, this device incorporates Ubiquiti’s advanced airMAX® technology, offering excellent noise immunity and reliable performance in congested RF environments. The PBE-M2-400 features a tight beamwidth, making it ideal for use in crowded areas where signal interference is common. With its dish reflector design, this device is highly efficient, providing stable, long-distance wireless connectivity for various outdoor applications, whether for home or enterprise-level deployments.

Product Features

Uniform Beamwidth Improves Noise Immunity

The PBE-M2-400 utilizes a tight beamwidth that enhances noise immunity, making it especially effective in areas with high RF interference. By focusing the signal in a narrow beam, the device minimizes the impact of nearby interference, ensuring more reliable performance.

More Efficient Footprint

The design of the PowerBeam M2 ensures efficient footprint use, offering high performance with a compact, space-saving structure. This makes it suitable for installations where space is limited, while still delivering optimal performance.

Faster Processor Increases Performance

Equipped with an Atheros MIPS 74KC processor running at 560 MHz, the PBE-M2-400 offers enhanced processing power, contributing to improved throughput and faster data processing. This allows for higher overall performance and better handling of high-demand applications.

Easy Assembly and Installation

The PBE-M2-400 is designed for easy assembly and installation, allowing users to quickly set up the device with minimal effort. The device includes a pole-mount kit and wall-mount options, making it adaptable to various installation scenarios.

Product Specifications

• Processor: Atheros MIPS 74KC, 560 MHz
• Memory: 64 MB DDR2, 8 MB Flash
• Networking Interface: 1 x 10/100/1000 Ethernet Port
• Wireless Approvals: FCC, IC, CE
• RoHS Compliance: Yes
• Power Supply: 24V, 0.5A PoE
• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Power Consumption: 6W
• Operating Frequency: 2.45–2.475 GHz
• Gain: 18 dBi
• VSWR: 1.5:1
• Built-In Mechanical Downtilt: +20° to -10°
• Output Power: 26 dBm
• Wind Loading: 77 lbf @ 125 mph
• Wind Survivability: 125 mph
• LEDs: Power, LAN, WLAN (4), Software-Adjustable Signal Strength LEDs
• Channel Sizes: 5/8/10/20/30/40 MHz
• Polarization: Dual Linear
• Enclosure: Outdoor UV Stabilized Plastic
• Mounting: Pole-Mount (Kit Included), Wall-Mount
• ESD/EMP Protection: Air: ±24 kV, Contact: ±24 kV
• Operating Temperature: -40 to 70°C (-40 to 158°F)
• Operating Humidity: 5 to 95% non-condensing
• Shock & Vibration: ETSI300-019-1.4

Product Includes

• airMax PowerBeam M2 2.4GHz 18dBi CPE
• 24V PoE Injector
• Mounting Hardware
