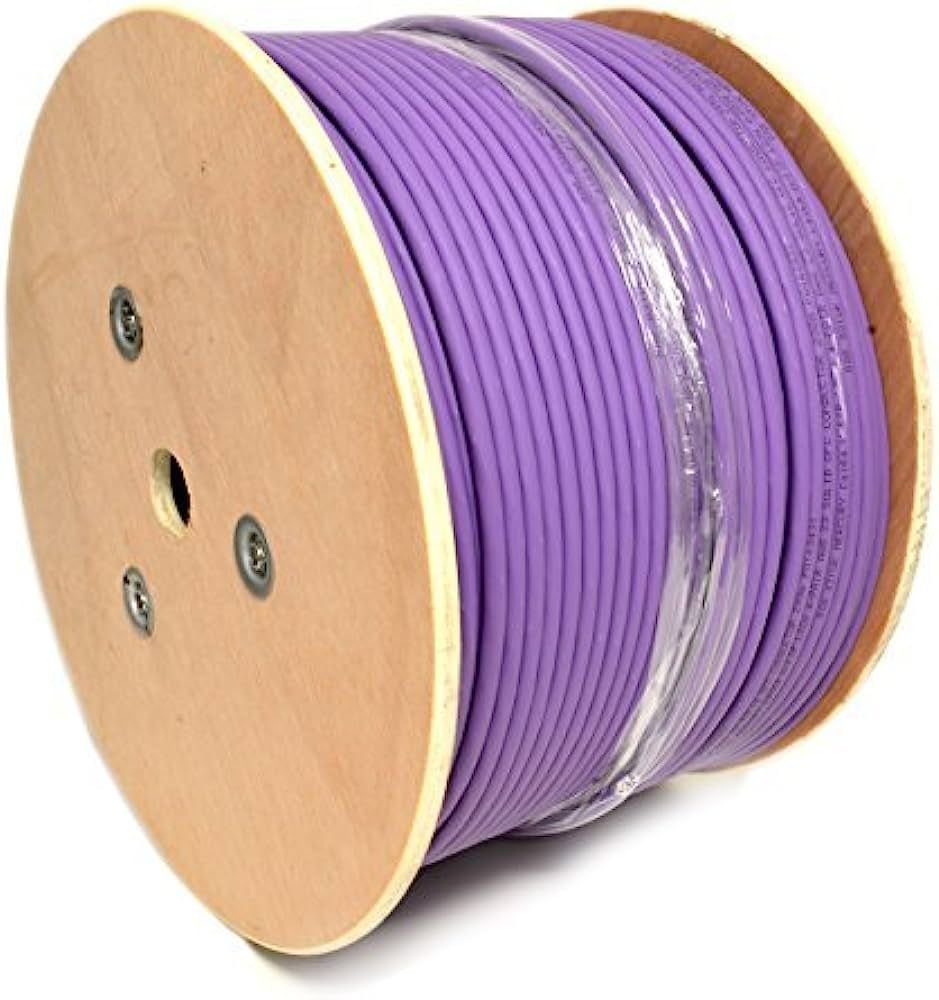

Siemon Cat 6A Ethernet Cable 305 Meters S/FTP

The Siemon Cat 6A Ethernet Cable (305 Meters S/FTP) is a premium-grade, shielded networking solution built for superior performance in demanding environments. Designed to exceed ANSI/TIA-568-C.2 and ISO/IEC 11801 Class EA standards, this cable supports full 10 Gigabit Ethernet (10GBASE-T) performance across a 100-meter, 4-connector channel, delivering ultra-reliable transmission for modern enterprise networks.

With its F/UTP (Foiled/Unshielded Twisted Pair) construction, the Siemon Cat 6A cable offers exceptional noise immunity and effectively eliminates alien crosstalk, ensuring high signal integrity even in dense data center deployments. Whether it’s VoIP, IP video, Power over Ethernet, or high-speed data transfer, this cable supports converged IP applications with ease.

Product Features

10 Gigabit Ethernet Performance

Supports full 10GBASE-T operation up to 100 meters, exceeding Category 6A channel requirements for optimal data transfer.

Advanced Shielding for Noise Immunity

The F/UTP shielding structure drastically reduces electromagnetic interference and virtually eliminates alien crosstalk for stable, high-performance networking.

Ideal for High-Density Installations

Perfect for CCTV megapixel IP cameras, VoIP, IP video, wireless backhaul, and enterprise networks, ensuring uninterrupted data and video transmission.

Fast, Reliable Termination

Combines Siemon’s renowned Z-MAX 6A shielded connectors with industry-leading termination speed, reducing installation time and ensuring long-term reliability.

Power over Ethernet Ready

Compatible with PoE, PoE+, and PoE++ (IEEE 802.3af, 802.3at), making it a future-proof solution for devices requiring both power and data over a single cable.

Product Specifications

• Cable Type: Cat 6A F/UTP (Foiled/Unshielded Twisted Pair)
• Cable Length: 305 meters (1000 feet)
• Color: Gray/Purple
• Conductor Material: Solid bare copper
• Conductor Size: 23 AWG
• Outer Jacket: PVC (CM rated)
• Performance Rating: Supports 10GBASE-T up to 100 meters
• Frequency: Up to 500 MHz
• Maximum Pulling Tension: 110N
• Operating Temperature: -20°C to 75°C (-4°F to 167°F)
• Installation Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -20°C to 75°C (-4°F to 167°F)
• Standards Compliance: ANSI/TIA-568-C.2, ISO/IEC 11801 Class EA
• Applications: 10BASE-T, 100BASE-TX, 1000BASE-T, 10GBASE-T, VoIP, IP Video, PoE/PoE+/PoE++, CCTV, WLAN Infrastructure
