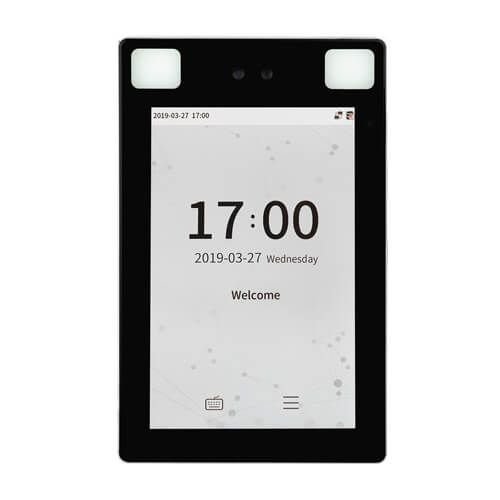

ZKTeco ProFace X (SL) Face Verification Terminal

The ZKTeco ProFace X (SL) is a next-generation biometric face verification terminal powered by cutting-edge 3D structured light technology. Engineered for high-traffic, high-security environments, it delivers precise facial recognition and unmatched spoof detection using advanced depth-sensing techniques. With an ultra-fast recognition speed of 0.3 seconds and the ability to store up to 50,000 face templates, the ProFace X (SL) is ideal for commercial buildings, secure facilities, and enterprise-level access control systems. Its rugged IP68 and IK04-rated design ensures durability in extreme outdoor conditions, making it a versatile solution for any installation.

Product Features

3D Structured Light Facial Recognition Utilizes active 3D surface imaging to project light patterns onto a target and detect face depth, distance, and contour, ensuring superior accuracy and security. Ultra-Large Face Capacity Supports 30,000 standard face templates, expandable to 50,000, with an additional capacity for 50,000 card users and 1,000,000 transaction records. Anti-Spoofing Technology Fully resistant to 2D photo, video, and mask-based spoofing attempts using advanced liveness detection algorithms and infrared verification. Intelligent Wake-Up Function Integrated microwave sensor detects user presence and activates the terminal automatically, enabling power-efficient operation and faster access. High-Performance Camera and Display Features a 2MP starlight CMOS sensor with WDR for low-light environments, paired with an 8-inch IPS touch screen offering 400cd/m² brightness for clear visibility in direct sunlight. Rugged IP68 and IK04 Protection Designed to operate in extreme environments with protection against dust, water, and physical impact. Operates reliably from -30°C to +60°C. Advanced Communication and Integration Offers multiple connectivity options including TCP/IP, RS232, RS485, Wiegand, and optional Wi-Fi. Compatible with ZKBioSecurity software and various third-party access control systems.

Product Specifications

• Face capacity: 30,000 (standard), 50,000 (optional)
• User/card capacity: 50,000
• Transaction capacity: 1,000,000 (optional: 2,000,000)
• User photo capacity: 30,000
• Event photo capacity: 10,000
• Face recognition speed: ≤0.35 seconds
• Face algorithm: ZKLiveFace 5.8
• Camera: 2MP WDR starlight CMOS sensor
• Display: 8-inch IPS touch LCD, 400cd/m² brightness
• Communication: TCP/IP, RS232, RS485, Wiegand input/output, optional Wi-Fi
• Access control interface: Lock relay output, alarm output, auxiliary input, exit button, door sensor
• Compatibility: ZKBioSecurity, Security Relay Box, third-party readers (FP/RFID/Barcode/QR)
• Operating temperature: -30°C to +60°C
• Operating humidity: ≤93%
• Storage temperature: -40°C to +65°C
• Power supply: DC 12V
• Current draw: < 2,000mA
• IP rating: IP68
• Impact protection: IK04
• Dimensions (H x L x D): 227 × 143 × 26.1 mm
• Net weight: 853g
