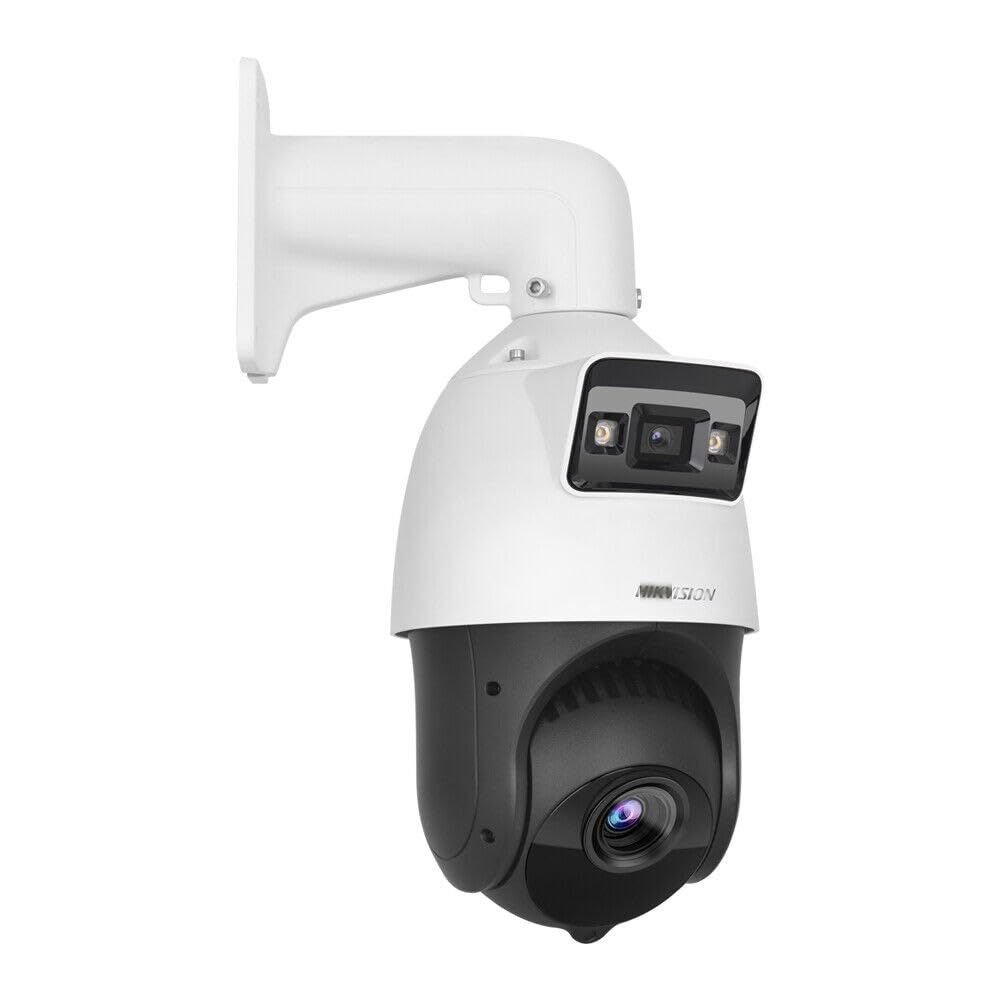

Hikvision DS-2SE4C425MWG-E(14F0) 4MP 25X PTZ Network Camera

The Hikvision DS-2SE4C425MWG-E(14F0) PTZ Network Camera is a powerful and intelligent surveillance solution engineered for comprehensive outdoor security. It combines 4MP high-resolution imaging, 25X optical zoom, and advanced AI-driven detection to deliver clear, focused, and actionable video footage. Designed for wide-area coverage, this camera features Smart PTZ tracking, H.265+ video compression, and infrared night vision up to 100 meters. Its IP66-rated weatherproof enclosure ensures dependable operation in harsh environments, making it an excellent choice for commercial, industrial, and public space surveillance systems.

Product Features

4MP Ultra HD Resolution for Clearer Surveillance Equipped with dual 4MP sensors, this camera delivers 2560 × 1440 resolution for both the bullet and PTZ channels, ensuring highly detailed and sharp video output for enhanced monitoring accuracy. 25X Optical Zoom for Long-Range Viewing The PTZ channel features a 25X optical zoom (4.8 mm to 120 mm), allowing security personnel to capture fine details at long distances without loss of image clarity—ideal for large perimeter monitoring. Smart Pan-Tilt-Zoom for Full Area Coverage The motorized PTZ function supports 360° endless pan and -15° to 90° tilt, with configurable speeds and auto-tracking capabilities. This enables efficient wide-area surveillance and intelligent focus on moving objects. Infrared Night Vision up to 100 Meters High-powered IR LEDs allow the PTZ channel to deliver clear black-and-white images in complete darkness up to 100 meters, while the bullet channel supports white light up to 30 meters. AI-Powered Human and Vehicle Detection Advanced AI algorithms enable the camera to differentiate between people and vehicles, minimizing false alarms and providing smart event detection such as intrusion, line crossing, and region entrance/exit alerts. H.265+ Compression for Efficient Storage H.265+ video encoding significantly reduces bandwidth and storage needs without compromising quality. This ensures longer retention times and optimized storage performance. Power over Ethernet (PoE+) for Simplified Installation PoE+ capability allows for both power and data transmission via a single Ethernet cable, reducing cabling complexity and enabling faster, more cost-effective deployment. IP66-Rated Weatherproof Housing Engineered with a rugged aluminum alloy body and IP66-rated weatherproofing, the DS-2SE4C425MWG-E(14F0) resists dust, rain, and extreme temperatures, delivering reliable outdoor performance. Two-Way Audio and Alarm Interface Built-in audio input/output supports real-time communication, and alarm I/O enables integration with other security systems for comprehensive situational awareness and response.

Product Specifications

Camera and Lens

• Image Sensor: Dual CMOS (1/2.8″ PTZ, 1/3″ Bullet)
• Resolution: 2560 × 1440 (4MP)
• Optical Zoom: 25X (PTZ)
• Digital Zoom: 16X
• Min. Illumination: Color 0.005 Lux, 0 Lux with IR
• IR Range: Up to 100 m (PTZ), 30 m (Bullet)
• Field of View: 55° to 2.4° (PTZ), 96.1° (Bullet)

PTZ Functionality

• Pan Range: 360° endless
• Tilt Range: -15° to 90°
• Presets: 300
• Patrol Scans: 8 patrols with 32 presets each
• Pattern Scans: 4
• 3D Positioning: Supported
• Scheduled Tasks & Smart Tracking: Supported

Video Performance

• Main Stream: Up to 2560 × 1440 @30 fps (Bullet & PTZ)
• Compression: H.265, H.264, MJPEG
• ROI: 8 configurable regions per stream
• Video Bitrate: 32 Kbps to 16,384 Kbps
• WDR: 120 dB
• Image Enhancements: BLC, HLC, 3D DNR, Defog, EIS

Audio and Communication

• Compression: G.711, AAC-LC, MP2L2
• Two-Way Audio: Supported via 3.5mm jacks
• Audio Noise Filtering: Enabled
• Alarm I/O: 1 input, 1 output

Network

• Network Interface: RJ45 10/100M
• Protocols: IPv4/IPv6, HTTPS, RTSP, SNMP, ONVIF, and more
• Concurrent Streams: Up to 20
• Storage: microSD up to 256 GB, NAS, FTP support
• Remote Access: iVMS-4200, Hik-Connect, Web Browser

Build and Power

• Construction: Die-cast aluminum (ADC12)
• Protection: IP66, 6000V Lightning, Surge & Voltage Protection
• Operating Temp: -30°C to 65°C
• Power Supply: 12VDC or PoE+
• Power Consumption: Max. 24W (incl. heater and IR)
• Dimensions: Ø166 × 375 mm
• Weight: Approx. 2.4 kg
