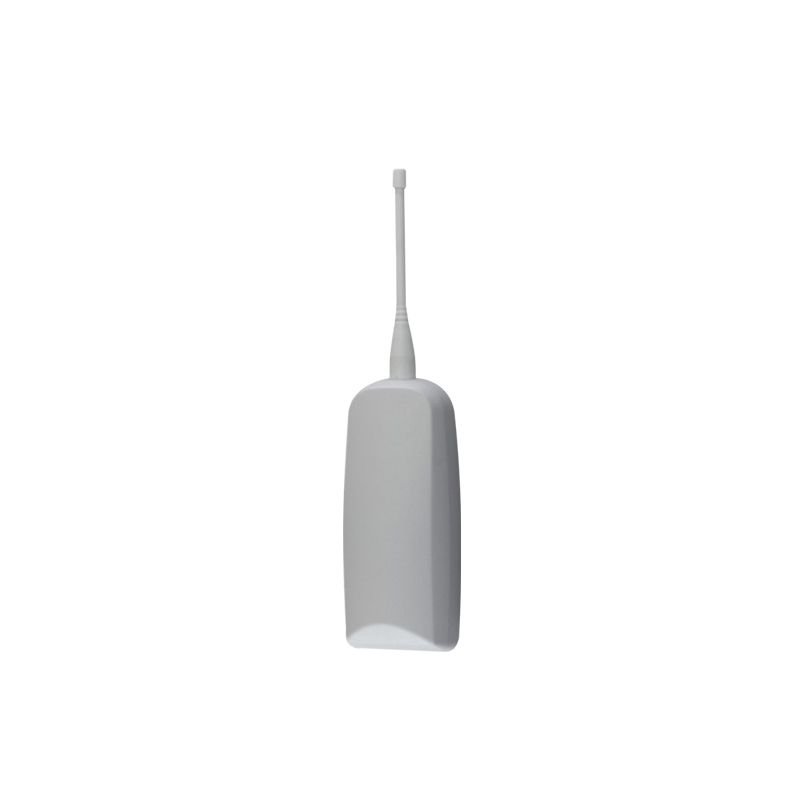

Panic System Remote Sherlotronics for Security and Access Control

The Panic System Remote from Sherlotronics is a high-performance, long-range wireless control device designed to enhance access control, alarm management, and remote switching in security-sensitive environments. Ideal for both residential and commercial installations, it supports panic activations, gate and garage automation, as well as remote control of lighting and generators. With code-hopping encryption and weatherproof housing, this system delivers security, reliability, and flexibility in demanding conditions.

Product Features

Secure Code-Hopping Encryption

Prevents signal duplication and unauthorized access by using rolling code encryption, ensuring secure signal transmission at all times.

Long-Range Wireless Control

Achieves up to 500 meters open-air transmission range, allowing control of devices across large properties without signal degradation.

Configurable Momentary or Latching Outputs

Supports various control modes—1-second, 3-second, 1-minute, 3-minute, and continuous ON/OFF—to suit a wide range of automation needs.

Versatile Security Applications

Designed for panic alerts, arming/disarming alarm systems, and switching of electric lights, gates, and generators with high responsiveness.

Crystal-Controlled Frequency

Maintains stable and reliable communication with a ±100 kHz crystal-controlled frequency accuracy on 403MHz or 433MHz bands.

Durable Weatherproof Design

Encased in a weather-resistant housing, making it suitable for outdoor and industrial installations where durability is essential.

Product Specifications

• Encryption: Code-hopping
• Frequency: 403MHz / 433MHz
• Range: 500 meters (open air)
• Voltage Range: 10V to 26V AC/DC
• Current Draw: 20mA
• Operating Temperature: -3°C to 60°C
• Memory Capacity:
  • RX1-500: Supports up to 80 remotes
  • RX4-500: Supports up to 64 remotes
• Output Modes: Latch or Momentary (1s, 3s, 1min, 3min, ON/OFF)
• Audio Alert: Built-in buzzer tone
• Frequency Control: Crystal-controlled within ±100kHz
• Input Power: 12 – 24V AC/DC
• Enclosure: Weatherproof housing
• Dimensions: 187 x 104 x 67 mm
• Weight: 235 grams
• Warranty: 24 months
