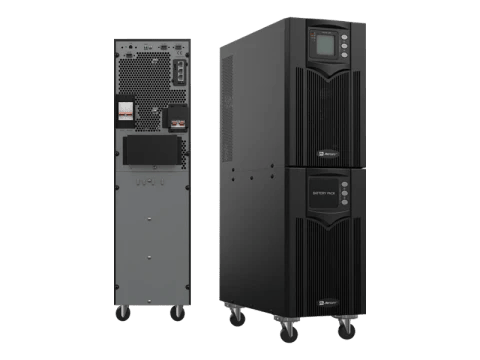

Mercury MP Pro 10K S 10KVA/10KW Online UPS 1/1 Phase with USB & RS232 Communication

The Mercury MP Pro 10K S is a high-performance 10KVA (10KW) online uninterruptible power supply designed to deliver uninterrupted, clean, and regulated power for critical single-phase systems. With true double-conversion technology and a unity power factor (1.0), this UPS offers maximum efficiency and full power delivery, making it ideal for demanding applications such as server rooms, medical labs, industrial automation, and large IT infrastructures. It features a powerful ±120VDC battery configuration using 20 x 8.2Ah/12V sealed batteries, ensuring extended runtime during outages. The integrated input/output terminal and communication ports (USB and RS232) provide flexible integration and real-time system monitoring.

Product Features

True Online Double-Conversion Technology (1.0 Power Factor)
The Mercury MP Pro 10K S provides seamless protection through double-conversion architecture, continuously converting incoming AC to DC and then back to AC. This ensures that connected equipment receives clean, stable, and isolated power free from spikes, surges, voltage sags, or frequency fluctuations. The unity power factor ensures full 10KW of usable power.

10KVA/10KW High Capacity Output
With a robust output capacity of 10KVA (10KW), this UPS supports a wide range of mission-critical equipment, including network servers, healthcare systems, point-of-sale infrastructure, and industrial controls. Its single-phase output design is ideal for centralized distribution in environments requiring strong, consistent power delivery.

Extended Runtime Battery System (±120VDC, 20 x 8.2Ah/12V Batteries)
Equipped with 20 high-quality sealed lead acid batteries (8.2Ah/12V), the Mercury MP Pro 10K S delivers prolonged backup power, allowing systems to run or safely shut down during outages. The ±120VDC configuration supports high energy efficiency and quick recharge—restoring up to 90% capacity in just 6–8 hours.

Flexible Input/Output Terminal Integration
The input/output terminal simplifies custom installation and enables seamless connection to different power infrastructures. Whether powering a dedicated rack or multiple downstream systems, the UPS ensures stable distribution and efficient power management.

Comprehensive Communication Interfaces (RS232 & USB)
With built-in RS232 and USB ports, users can connect the UPS to monitoring platforms for real-time status updates, remote diagnostics, and automated alerts. These ports support system shutdown protocols, making the unit suitable for advanced network and facility integration.

Product Specifications

• UPS Type: True Online Double-Conversion
• Power Rating: 10KVA / 10KW
• Phase Configuration: 1/1 Phase (Single-phase input and output)
• Power Factor: 1.0
• Input Voltage Range: 176V – 276V AC, 50/60Hz
• Output Voltage: 220V ± 1%
• Waveform (Battery Mode): Pure Sine Wave
• Battery Type: Sealed Lead Acid (Maintenance-Free)
• Battery Configuration: ±120VDC (20 x 8.2Ah/12V)
• Recharge Time: 6–8 hours to 90% capacity
• Input/Output Terminal: For flexible power distribution
• Communication Ports:
  • RS232 (for system monitoring and control)
  • USB (for local monitoring and plug-and-play setup)
• Display: LCD panel showing input/output voltage, load level, battery status, and fault indicators
• Audio Alarms: Alerts for power failure, low battery, overload, and system faults
• Surge Protection: Integrated
• Operating Temperature: 0°C to 40°C
• Dimensions (D x W x H): 740 x 540 x 220 mm
• Weight: 55 kg
• Certifications: CE, RoHS, ISO9001
• Warranty: 2-year limited warranty (including battery)
