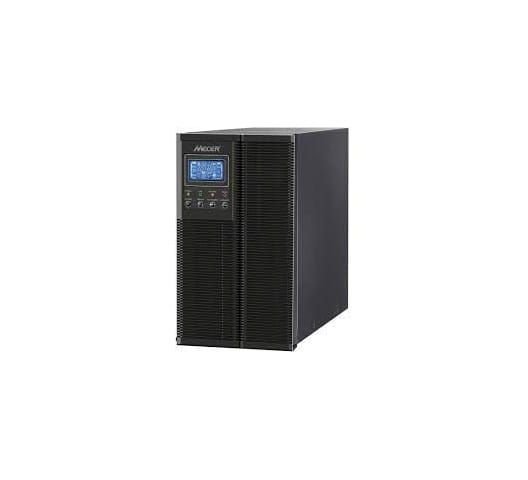

Mecer ME-10000-GTU 10KVA Online 3 Phase Smart UPS

The Mecer ME-10000-GTU 10KVA Online 3-Phase Smart UPS is an advanced power protection solution designed to safeguard critical infrastructure in medium to large-scale businesses, data centers, telecommunications, industrial systems, and IT networks. With a 10kVA/8,000W power rating, this True Double-Conversion Online UPS provides reliable, uninterrupted power, ensuring your sensitive equipment operates seamlessly even in the event of power disruptions. This 3-phase UPS system features high efficiency, built-in surge protection, and battery optimization. Its expandable battery capacity, programmable outlets, and advanced management capabilities make it a flexible and scalable solution for high-demand applications. The Mecer ME-10000-GTU is ideal for environments requiring high-performance, power-sensitive equipment protection, such as servers, networking devices, industrial machines, and medical equipment.

Product Features

10kVA (8,000W) High Power Capacity

With a power rating of 10,000 VA / 8,000W, the Mecer ME-10000-GTU UPS is well-suited for medium to large-scale enterprises that require substantial backup power. This capacity can support a variety of critical equipment, from network servers to industrial machinery and telecommunications systems, ensuring continuous operation and protecting against power outages and fluctuations.

True Double-Conversion Online Technology

The True Double-Conversion Online technology ensures continuous and uninterruptible power for all connected devices. This technology continuously converts incoming AC power to DC, then back to a clean, stable AC output, providing zero transfer time and protecting against power anomalies such as voltage surges, sags, and harmonic distortions. With pure sinewave output, your equipment receives the highest quality of power, minimizing the risk of damage due to unstable power conditions.

Wide Input Voltage Range & Power Factor Correction (PFC)

The ME-10000-GTU offers a wide input voltage range of 110-300 VAC, making it ideal for areas with inconsistent power supply. This UPS also features Power Factor Correction (PFC) with a 0.99 power factor, optimizing the power usage and reducing energy consumption, which translates to lower utility bills and greater system efficiency.

Expandable Battery Capacity

This UPS supports an expandable battery configuration, allowing users to customize the backup time by adding more batteries if needed. The expandable battery charger is capable of handling up to 8A, ensuring that the batteries are charged quickly and efficiently during power restoration while also preventing overcharging, which can damage the batteries. This feature is especially beneficial for long-duration power backup applications, providing flexibility in the system’s runtime.

Programmable Power Management & EPO Function

The ME-10000-GTU includes programmable power management outlets, allowing users to schedule UPS functions, such as shutdowns, battery tests, and load control, for greater operational efficiency. The system also features an Emergency Power-Off (EPO) function, which enables quick and safe shutdown of the entire system in case of an emergency, preventing potential damage to sensitive equipment.

ECO Mode for Energy Savings

The ECO Mode operation reduces overall power consumption when the UPS operates within optimal conditions. By bypassing certain internal power conversion processes, the system ensures high efficiency and reduced electricity usage during periods of stable power input, which can help lower operating costs and reduce the overall environmental impact of your operations.

Real-Time Monitoring & Smart Battery Management

The Mecer ME-10000-GTU UPS is equipped with advanced monitoring capabilities via an LCD panel and includes smart battery management features to optimize the charging and health of the battery pack. The LCD panel provides users with real-time data such as input/output voltage, battery level, load level, fault conditions, and more. Additionally, the smart battery charger design ensures that the batteries are charged in an optimal manner to prolong their lifespan and ensure maximum reliability when backup power is needed.

Multi-Communication Support for Remote Monitoring

The Mecer ME-10000-GTU supports multiple communication protocols, including RS-232, USB, and SNMP, allowing for easy integration into your existing infrastructure and enabling remote management and monitoring. The included UPS management software provides powerful tools such as real-time dynamic graphs, battery status monitoring, and power analysis, while also offering email alerts and audible alarms to notify users of system events and conditions.

Pure Sinewave Output

With a pure sinewave output in battery mode, the ME-10000-GTU delivers clean, stable power to connected devices, preventing potential damage to sensitive electronics caused by distorted or noisy power from traditional UPS systems. This feature is essential for protecting servers, networking equipment, and other sensitive technology.

Product Specifications

• Model: ME-10000-GTU
• Power Rating: 10,000 VA / 8,000 W
• Maximum Load: 8,000 watts
• Technology Type: True Double-Conversion Online
• Input Voltage Range: 110-300 VAC
• Input Power Factor Correction: 0.99
• Output Voltage: 220/230/240V
• Output Power Factor: 0.8
• Frequency Range: 50Hz / 60Hz (Frequency Converter Mode)
• Waveform (Battery Mode): Pure Sinewave
• Harmonic Distortion: ≤ 3% THD (Linear Load)
• Efficiency:
  • AC Mode: 93%
  • Battery Mode: 91%
• Transfer Time: Zero (AC to Battery Mode)
• Battery Type: Expandable (up to 8A charging capacity)
• Battery Recharge Time: 9 hours to 90% capacity
• Outlets: 8
• Communication Ports: RS-232, USB, SNMP (Optional)
• UPS Management Software: Included (real-time monitoring, dynamic graphs, power analysis)
• EPO Function: Yes
• Dimensions (D x W x H): 440mm x 480mm x 88mm (Rackmountable, 2U)
• Net Weight: 38 kg
• Operating Temperature: 0-40°C
• Humidity: 0-95% RH (non-condensing)
• Noise Level: < 58 dB
• Warranty: 2-year warranty
