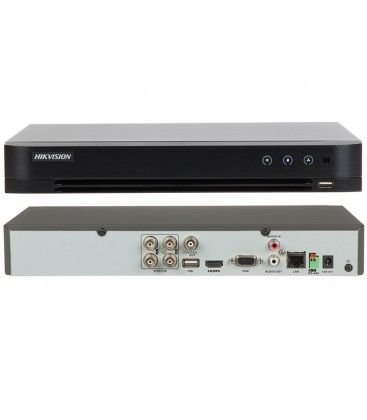

Hikvision iDS-7204HQHI-M1/XT 4-Channel 1080p 1U H.265 AcuSense DVR

The Hikvision iDS-7204HQHI-M1/XT is a high-performance 4-channel digital video recorder designed to deliver intelligent, reliable, and efficient surveillance. Engineered with Hikvision’s AcuSense technology, this DVR enables advanced human and vehicle detection for accurate alerts and fewer false alarms. Supporting HD analog cameras with up to 1080p resolution, it delivers sharp, high-quality video capture. With H.265+ compression, smart playback, multi-format compatibility, and remote access via the Hik-Connect app, this DVR is ideal for homes, offices, and small businesses seeking advanced security functionality with streamlined storage efficiency.

Product Features

4-Channel 1080p HD Video Input for Crystal-Clear Monitoring

Supports four high-definition analog camera channels at full 1080p resolution to ensure clear, detailed video footage for accurate security analysis and monitoring.

AcuSense AI-Powered Human & Vehicle Detection

Utilizes deep learning algorithms to differentiate humans and vehicles from other motion triggers, significantly reducing false alarms and improving event accuracy.

H.265+ Video Compression for Optimized Storage Efficiency

Reduces bandwidth and storage needs by up to 50% compared to H.264, extending recording time and lowering storage costs without compromising video clarity.

HDMI & VGA Output for High-Resolution Playback

Features HDMI and VGA outputs supporting up to 1920×1080 resolution, allowing seamless connection to HD monitors for sharp, clear video playback.

Smart Playback for Fast Event Search

Enables users to quickly locate key footage by filtering events by motion, human, or vehicle activity, streamlining the process of reviewing video.

Remote Access & Mobile Viewing via Hik-Connect

Supports remote monitoring via Hik-Connect, giving users live view and playback access from smartphones, tablets, or PCs, anytime and anywhere.

Multi-Format Camera Compatibility

Compatible with TVI, AHD, CVI, and CVBS camera formats, offering greater flexibility when integrating new or existing analog cameras into the system.

Flexible Recording Modes for Custom Security Needs

Supports continuous, motion-based, and scheduled recording modes, enabling tailored security solutions based on individual monitoring requirements.

Compact 1U Rackmount Design for Easy Installation

The 1U form factor allows for simple installation in tight spaces or standard racks, making it suitable for a variety of surveillance environments.

Product Specifications

• Facial Recognition: Supports face picture comparison, face picture library (up to 16 libraries), and face-based search with 1-channel analog support.
• Motion Detection 2.0: Deep learning-powered motion detection with human and vehicle classification; reduces false alarms and supports smart search by event.
• Perimeter Protection: Supports up to 2 channels of human/vehicle analysis for perimeter monitoring.
• IP Video Input: 2 channels IP input (up to 6 channels), supports up to 6 MP resolution.
• Analog Video Input: 4-channel BNC with support for coaxitron protocol.
• Video Format Compatibility: Supports HDTVI, AHD, HDCVI, and CVBS inputs up to 5 MP.
• CVBS Output: 1-channel BNC with PAL/NTSC resolution support.
• HDMI & VGA Output: Both outputs support 1920 × 1080/60Hz and other common HD resolutions.
• Audio: 1-channel RCA input (expandable to 4), 4-channel coaxial audio, 1-channel RCA output, and 2-way audio support.
• Playback: Synchronous 4-channel playback.
• Video Compression: H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264 formats supported.
• Encoding Resolution & Frame Rate: Supports resolutions from CIF to 5 MP lite with various framerate options depending on mode.
• Network: Up to 32 remote connections, 72 Mbps bandwidth, and support for protocols including TCP/IP, DHCP, Hik-Connect, and ONVIF.
• Wi-Fi: Supports Wi-Fi connectivity via USB dongle.
• Storage: 1 SATA interface, up to 10 TB capacity.
• Interfaces: RS-485, dual USB 2.0 ports (front and rear).
• Power Supply: 12 VDC, 1.5 A with ≤18 W power consumption.
• Environmental Tolerance: Operates from -10 °C to 55 °C with up to 90% humidity.
• Dimensions: 319 × 236 × 48 mm
• Weight: ≤1.16 kg
