Hikvision- HiLook 4-ch H.265 2 MP Bullet &Turret Kit-DS-J142I(STD)/TK-4142MH-MH

The Hikvision HiLook DS-J142I(STD)/TK-4142MH-MH is a high-performance 4-channel surveillance kit featuring H.265 video compression technology and 2MP bullet and turret cameras for crystal-clear video recording. Designed for homes, businesses, and small offices, this complete CCTV kit offers reliable security monitoring with high-definition footage, night vision, and remote access capabilities. Its user-friendly plug-and-play setup makes it an ideal solution for both professional and DIY security installations.

Product Features

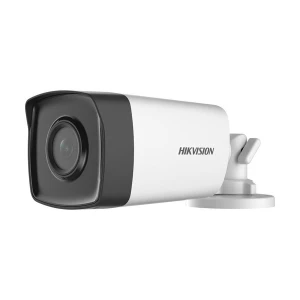

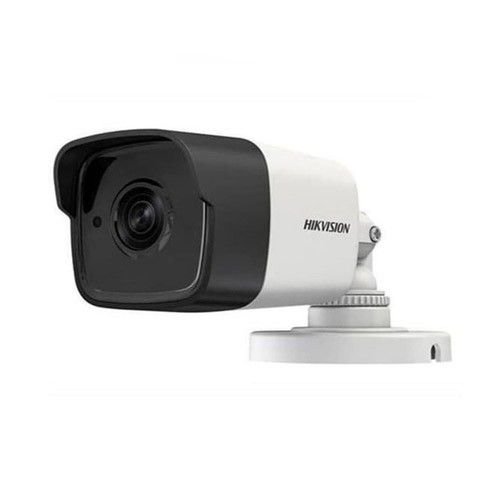

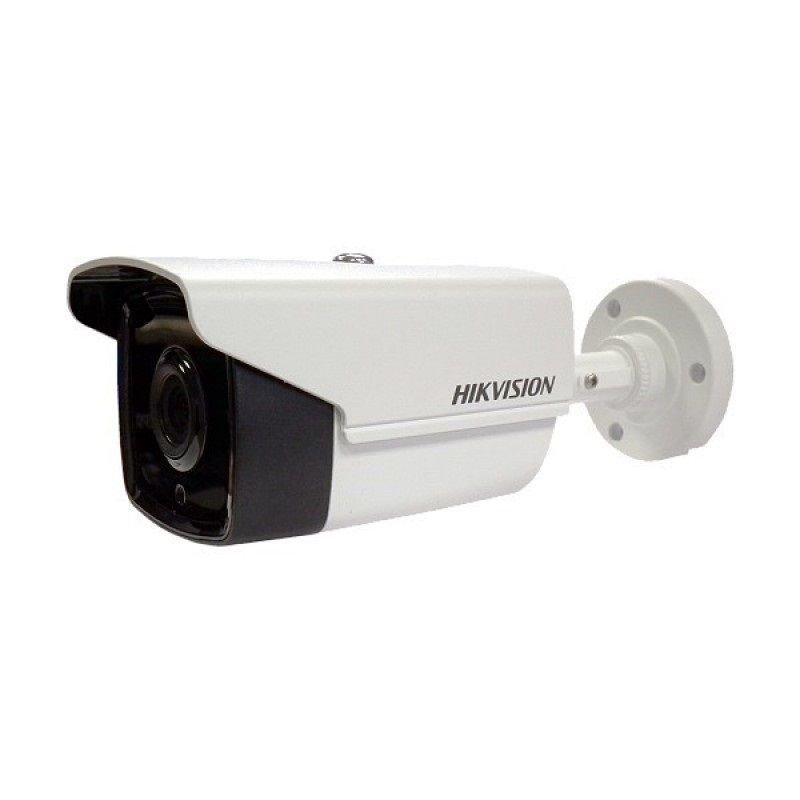

High-Definition 2MP Bullet & Turret Cameras

This kit includes a combination of bullet and turret cameras, each with a 2MP resolution, ensuring sharp, clear video footage for detailed surveillance.

Advanced H.265 Video Compression

Utilizing H.265+ compression technology, the system reduces bandwidth and storage requirements, allowing for longer recording durations without compromising video quality.

Powerful Night Vision Capabilities

Equipped with infrared (IR) night vision, these cameras provide clear footage in low-light and complete darkness, extending visibility up to 20-30 meters for round-the-clock security.

4-Channel DVR for Efficient Monitoring

The included 4-channel digital video recorder (DVR) supports simultaneous recording and playback, allowing users to monitor multiple camera feeds from one centralized system.

Remote Access via Hik-Connect App

Users can view live footage, playback recordings, and manage settings remotely using the Hik-Connect mobile app, providing convenient monitoring from anywhere.

Weatherproof Cameras for Outdoor & Indoor Use

Built with IP66-rated weather-resistant housings, the cameras can withstand harsh weather conditions, making them suitable for both indoor and outdoor installation.

Motion Detection & Smart Alerts

The system features motion detection technology, sending instant notifications to users when movement is detected, enhancing security and response time.

Product Specifications

External Interface

• Network Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• USB Ports: 2 × USB 2.0 (Rear panel)

Recording and Encoding

• Resolution: Supports 4MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF
• Frame Rate:
  • Without 1080p Lite: 4MP lite@15fps; up to 30fps for lower resolutions
  • With 1080p Lite enabled: Up to 30fps, depending on resolution
• Audio Compression: G.711u standard

Video and Audio Inputs

• Analog Input: 4-channel BNC interface supporting coaxitron connection
• Audio Input: 1 RCA channel
• Two-Way Audio: 1 RCA channel for real-time communication
• VGA/HDMI Output: Up to 1920 × 1080 resolution at 60 Hz

Camera Details

• Lens Options: 2.8 mm, 3.6 mm, 6 mm
• Field of View:
  • 103° (2.8 mm)
  • 80.7° (3.6 mm)
  • 50.1° (6 mm)
• Image Sensor: 2 MP CMOS sensor
• IR Range: Up to 20 meters for clear night vision

General Specifications

• Operating Temperature: -40°C to 60°C
• Humidity Tolerance: Up to 90% (non-condensing)
• Power Consumption: Max. 4W
• Protection Level: IP66 for dust and water resistance
• Dimensions: 263(W) × 225(D) × 48(H) mm

Video/Audio Input Compatibility

• Supports Turbo HD, AHD, HDCVI, CVBS video formats
