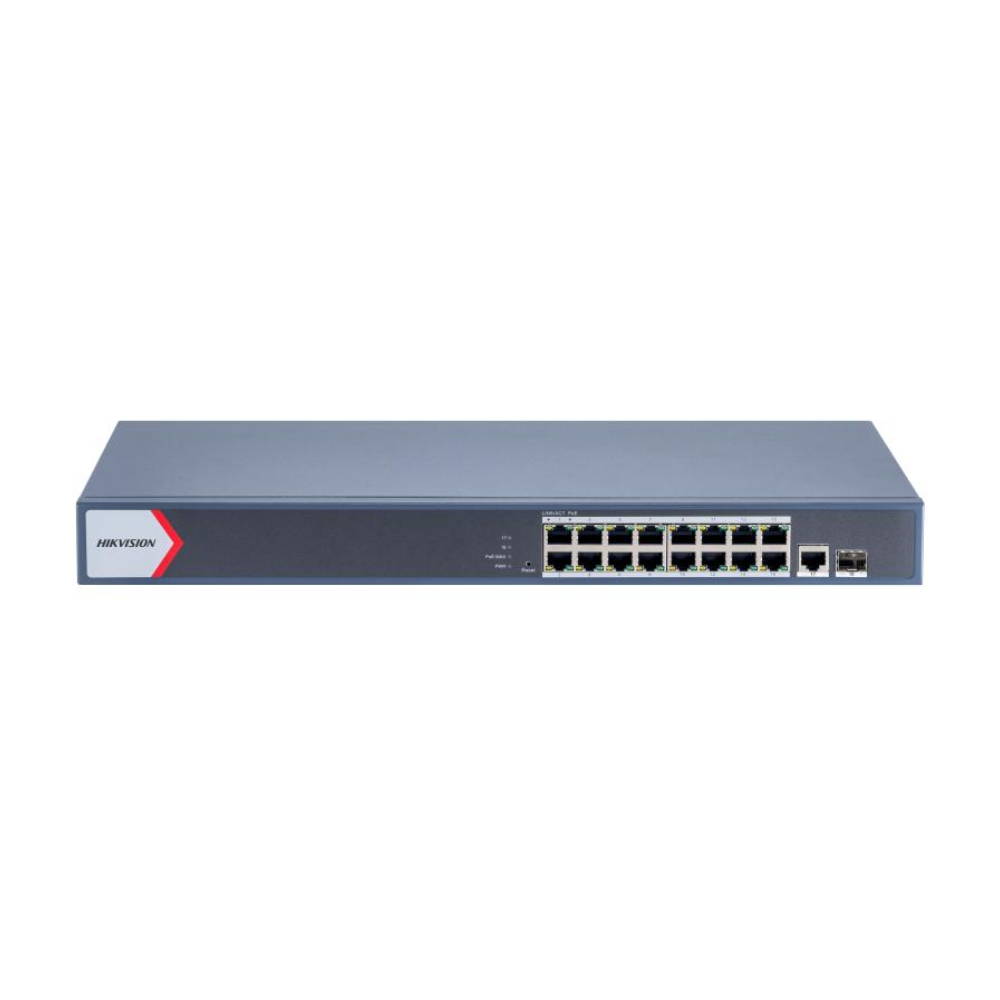

Hikvision DS-3E1518P-SI Smart Managed 16P Gigabit PoE Switch

The Hikvision DS-3E1518P-SI Smart Managed 16-Port Gigabit PoE Switch is a professional-grade networking solution designed for IP surveillance, enterprise networks, and smart security systems. With 16 Gigabit PoE ports and 2 additional uplink ports, this switch offers fast data transmission, reliable power supply to PoE devices, and intelligent network management. Equipped with advanced VLAN, QoS, and PoE management features, it ensures secure, efficient, and high-performance connectivity for IP cameras, wireless access points, and other PoE-enabled devices.

Product Features

16 Gigabit PoE Ports + 2 Gigabit Uplink Ports

Offers 16 high-speed Gigabit PoE ports for connecting IP cameras, VoIP phones, and access points, plus 2 additional uplink ports for seamless data transmission and network expansion.

Power over Ethernet (PoE) Support

Complies with IEEE 802.3af/802.3at PoE standards, providing intelligent power distribution for PoE-enabled devices without the need for separate power adapters.

Smart Power Management for Stable Operation

Includes overload protection, short circuit prevention, and intelligent power allocation, ensuring safe and reliable power distribution across connected devices.

Gigabit-Speed Performance for High-Bandwidth Applications

Supports 10/100/1000 Mbps transmission speeds, delivering smooth video streaming, fast data transfer, and reliable connectivity for surveillance and business applications.

Advanced VLAN and QoS for Network Optimization

VLAN segmentation enhances network security and performance.

QoS (Quality of Service) prioritizes critical traffic for better video streaming and VoIP communication.

Plug-and-Play Setup for Easy Deployment

Designed for hassle-free installation, the switch offers auto-detection of PoE devices and does not require complex configuration.

Durable and Professional Metal Housing

The rugged metal casing ensures excellent heat dissipation and long-lasting durability, making it ideal for continuous 24/7 operation in demanding environments.

Product Specifications

General

• ShellMetal material
• Net Weight 2.735 kg (6.03 lb)
• Gross Weight 3.31 kg (7.30 lb)
• Dimensions (W × H × D)440 mm × 44 mm × 220.8 mm (17.32” × 1.73” × 8.69”)
• Operating Temperature0 °C to 45 °C (0 °F to 113 °F)
• Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity 5% to 95% (no condensation)
• Relative Humidity 5% to 95% (no condensation)
• Power Supply100 to 240 VAC, 50/60 Hz, Max. 4 A
• Installation ModeRack (equipped with mounting ears)
• Max. Power Consumption 250 W
• Power Consumption in Idle25 W
• Surge Protection 6 KV surge protection for PoE ports.

Network Parameters

• Ports16 × Gigabit PoE port,2 × Gigabit fiber optical port
• MAC Address Table 8 K
• Switching Capacity56 Gbps
• Packet Forwarding Rate 41.66 Mpps
• Internal Cache4.1 Mbits

PoE Power Supply

• PoE StandardIEEE 802.3af,IEEE 802.3at
• PoE Power PinEnd-span: 1/2(+), 3/6(-);
• PoE Port PoE: Ports 1 to 16
• Max. Port Power30 W
• PoE Power Budget 225 W

Software Function

• Long Range

Ports 1 to 16: up to 300 m.

Long range performance may vary depend on camera model or cable condition.

• Port Isolation

Ports 1 to 16: port isolation mode to improve network security.

Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.

• PoE Watchdog Ports 1 to 16: auto detect and restart the cameras that do not respond.
• Link Aggregation

Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.

Support static link aggregation.

Support 8 aggregation groups.

• QoS

QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance.

Support port-based priority configuration.

Support SP, WRR priority schedule mode.

• Loop Prevention

Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.

Support 802.1D STP.

• VLAN

VLAN is used for network scale planning and network health improvement.

Support 802.1Q.

Configurable VLAN ID from 1-4094.

Support Trunk, Access port mode.

Support Max. 4094 VLAN.

• HPP

Support one-click activation and remote management via Hik-Partner Pro. Functions supported:

1. Display the port rate.
2. Display the port bandwidth utilization rate.
3. Display topology information.
4. Display the alarm status.
5. Restart ports and devices.
6. Remotely upgrade the device.

• System MaintenanceRemote upgrade, default parameters recovery, logs viewing, basic network parameters configuration, import and export configuration, time sync
• Port Rate-Limiting Port rate-limiting is used for port bandwidth adjustment to prevent network congestion.
• Storm Control

Storm control is used to prevent switch ports from being blocked by broadcast or multicast storms in the LAN, which may affect network communication.

Support port rate limiting based on broadcast, multicast, and unknown unicast packets.

Approval

• EMC

FCC (47 CFR Part 15, Subpart B);

CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017);

IC (ICES-003: Issue 6);

RCM (ASNZS CISPR 32: 2015)

• Safety

UL (UL 60950-1);

CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition);

CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)

• Chemistry

CE-RoHS (201165EU);

WEEE (201219EU);

Reach (Regulation (EC) No.19072006)
