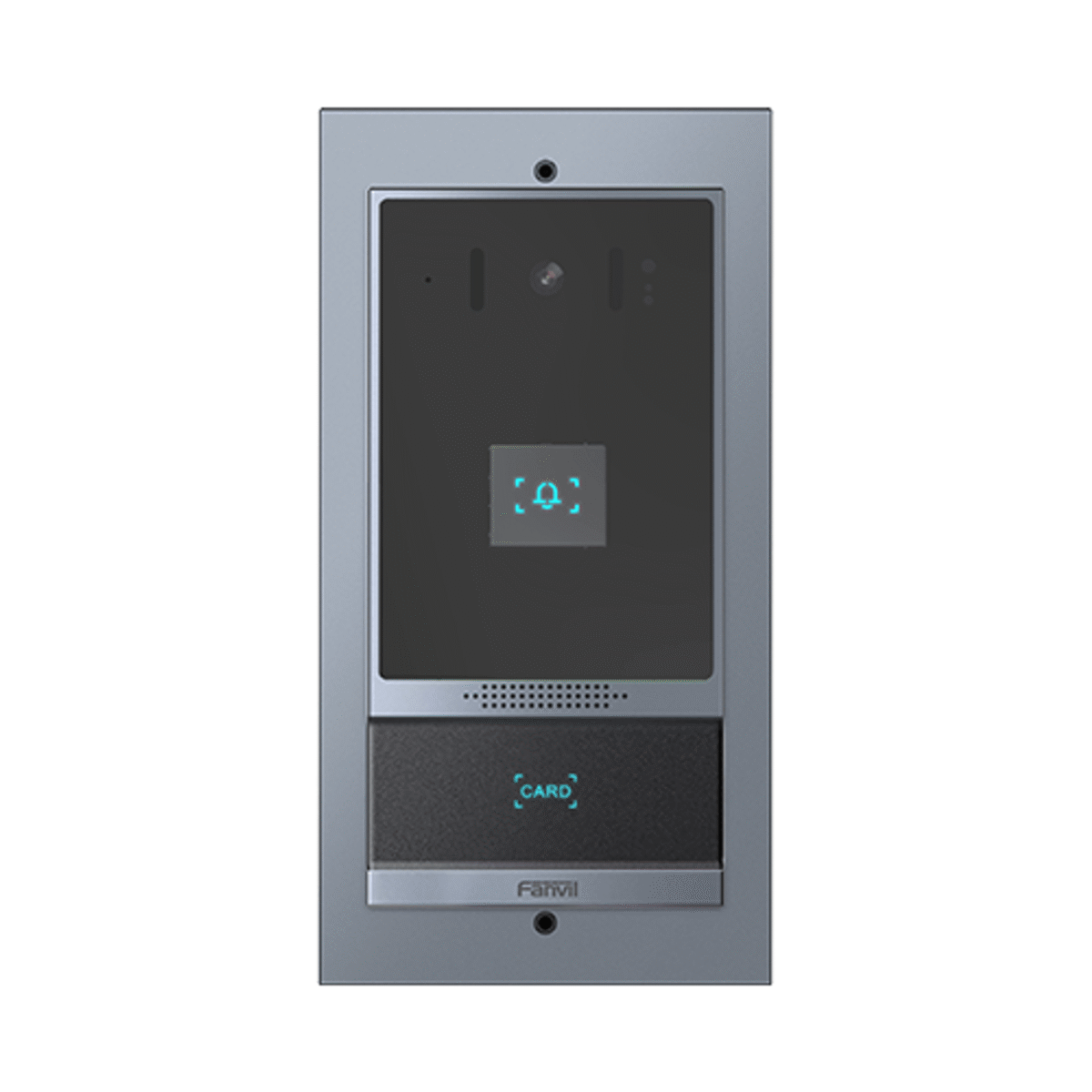

Fanvil i67 Face Recognition Door Phone

The Fanvil i67 Face Recognition Door Phone is an advanced access control device that combines intelligent facial recognition with robust audio and video communication capabilities. Designed for secure building entry in residential complexes, corporate facilities, and commercial properties, the i67 ensures fast, contactless identification and seamless interaction with indoor stations, IP phones, or mobile applications. With its built-in dual speakers, numeric keypad, and high-definition camera, the i67 offers reliable and efficient visitor management. It supports multiple authentication methods including face recognition, RFID card access, and PIN entry, all secured within a vandal-resistant IP66 and IK07-rated aluminum housing.

Product Features

High-precision face recognition technology

Equipped with a 2MP camera and advanced AI-driven recognition algorithms, the Fanvil i67 performs accurate facial identification with liveness detection. It can distinguish between real human faces and photos, videos, or masks to prevent unauthorized access.

Full HD touch display interface

The 7-inch 1024 x 600 color LCD touchscreen offers an intuitive and user-friendly interface for visitors and residents alike, making it easy to navigate access options.

Robust audio and video communication

Supports two-way SIP-based audio and video communication with IP phones, indoor stations, and mobile apps. Dual 4Ω/3W speakers ensure loud, clear voice transmission even in noisy environments.

Multi-method access control

Offers versatile access options, including facial recognition, RFID card reader (125KHz & 13.56MHz), numeric PIN via a backlit keypad, and mobile app support—providing flexibility and convenience for various use cases.

Durable and secure industrial-grade design

Housed in an aluminum alloy panel, the i67 is IP66 weatherproof and IK07 vandal-resistant, making it suitable for outdoor installation in harsh environments and high-traffic areas.

Large storage capacity

Supports storage of up to 10,000 face and card credentials, ideal for large buildings or communities requiring scalable access management.

Integration with third-party systems

Compatible with 3CX, an industry-leading software-based IP PBX, allowing easy integration into broader VoIP and unified communications infrastructures.

Product Specifications

• Display: 7-inch capacitive touchscreen, 1024 x 600 resolution
• Operating system: Linux
• Camera: 2-megapixel HD camera with liveness detection
• Keypad: Numeric keypad with blue backlight
• Card reader: Dual-frequency RFID (125KHz & 13.56MHz)
• Light sensor: Integrated ambient light sensor
• Speaker: Dual 4Ω / 3W high-quality speakers
• Power supply: 12V-1.5A DC or Power over Ethernet (PoE)
• Storage capacity: Up to 10,000 face and card records
• Short circuit input: 3
• Short circuit output: 2
• Wiegand port: Supported
• Protection rating: IP66 (weatherproof), IK07 (vandal-resistant)
• Working temperature: -40°C to 70°C
• Working humidity: 10% to 90% RH (non-condensing)
• Panel material: Aluminum alloy
• User interface: Simplified, intuitive UI design
• Installation environment: Outdoor or indoor wall-mounted
• System compatibility: SIP protocol, fully compatible with 3CX
