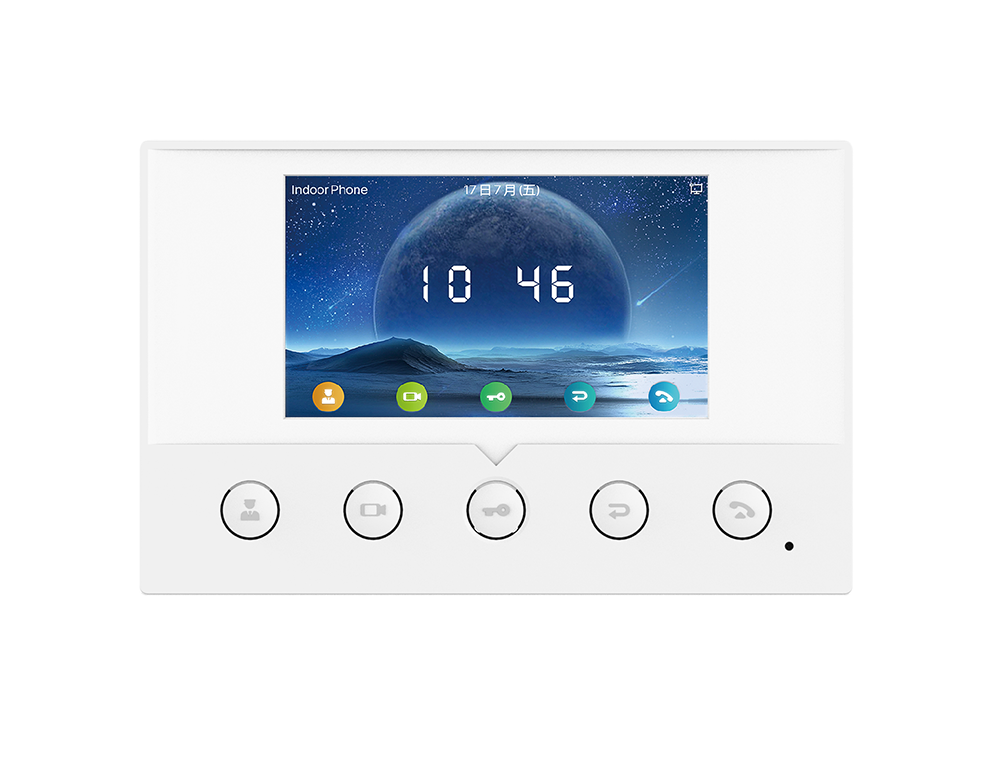

Fanvil i55A SIP Indoor Station

The Fanvil i55A SIP Indoor Station is a versatile and robust communication device designed for secure access control and real-time video monitoring in residential communities, villas, and office buildings. Featuring a 7-inch capacitive color touchscreen and running on the Android 9.0 operating system, the i55A supports industry application customization and secondary development. Its durable aluminum panel with physical buttons, dual-band Wi-Fi, Bluetooth 5.0, and comprehensive alarm inputs make it a reliable management assistant for modern security systems.

Product Features

7-inch capacitive color touchscreen

The i55A features a 7-inch (1024×600) high-resolution capacitive touchscreen, providing an intuitive user interface for effortless operation and clear video display.

Android 9.0 operating system

Powered by Android 9.0, this indoor station supports third-party applications, API development, and offers enhanced security and compatibility for customized industry solutions.

Durable aluminum panel with physical buttons

Designed with a sturdy aluminum panel and five physical buttons, the device ensures reliable durability and convenient manual control.

High-definition video monitoring

Supports real-time video from door phones with H.264 video codec and 1080P resolution for clear and sharp video communication.

HD audio with echo cancellation

Equipped with dual 1.5W speakers and Acoustic Echo Canceller (AEC) technology, the i55A delivers crystal-clear voice communication.

Wireless connectivity

Includes built-in Bluetooth 5.0 and dual-band Wi-Fi (2.4GHz and 5GHz) for flexible and stable wireless networking.

Comprehensive security interface support

Offers RS-485 communication, 8 alarm input interfaces, and 2 embedded relays for seamless integration with external security devices.

Power over Ethernet and wall-mounted installation

Supports PoE for easy installation without extra power cables, designed for secure wall mounting.

Product Specifications

• Display: 7-inch capacitive touchscreen, 1024×600 resolution
• Operating system: Android 9.0 with support for third-party apps and secondary development
• RAM/ROM: 2GB RAM / 16GB ROM
• Panel: Aluminum alloy with five physical buttons
• Video:
  • Hardware decoding: H.264 codec
  • Video call resolution: QVGA / CIF / VGA / 4CIF / 720P / 1080P
• Audio:
  • Codecs: G.711a/u, G.729AB, iLBC, G.722, Opus
  • Built-in 1.5W dual speakers with Acoustic Echo Canceller
• Network:
  • Ethernet: 10/100 Mbps
  • Wi-Fi: 2.4GHz (802.11 b/g/n), 5GHz (802.11 a/n/ac)
  • Bluetooth: Version 5.0
  • IP configuration: Static / DHCP
• SIP lines: 2
• Alarm Inputs: 8
• Relay outputs: 2 embedded relays (max DC30V/2A, AC125V/0.5A)
• Additional interfaces: RS-485, TF card slot, Micro USB, RJ45 Ethernet
• Power supply: DC 12V/1A or Power over Ethernet (PoE)
• Installation: Wall mount
• Dimensions: 217 x 124 x 21 mm
• Operating temperature: -10°C to 50°C
• Relative humidity: 10% – 90%
