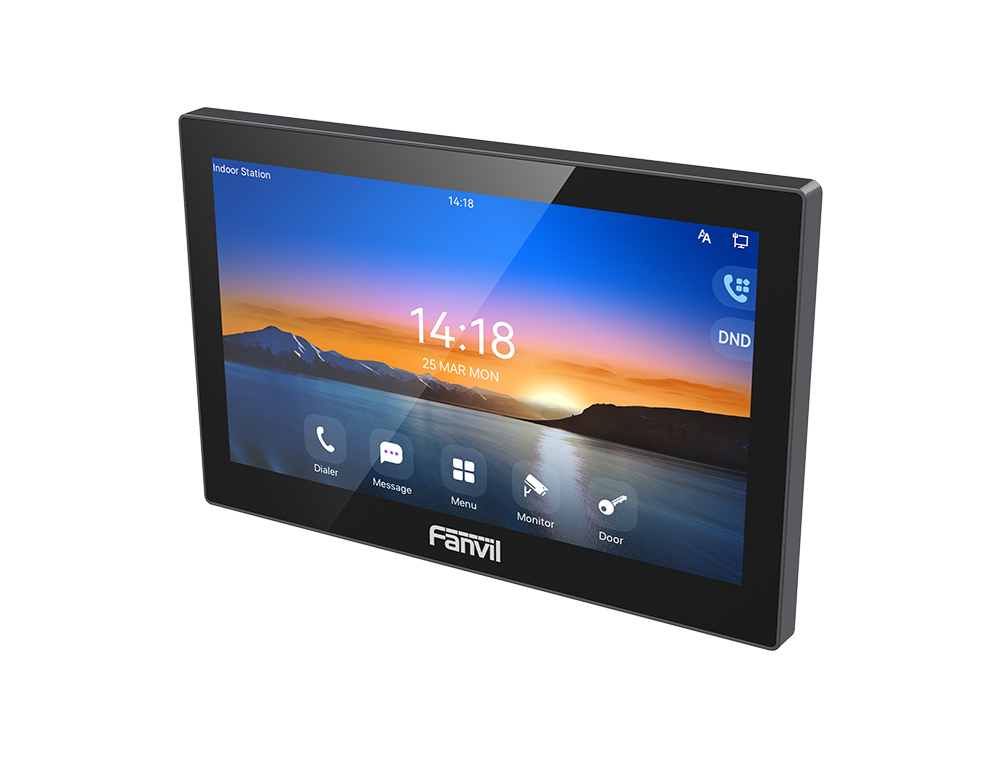

Fanvil i504W SIP Indoor Station

The Fanvil i504W SIP Indoor Station is a powerful communication and access control device designed for modern residential and commercial environments. Featuring a 7-inch color touchscreen, support for high-definition audio and video, and a user-friendly Linux-based interface, the i504W enables seamless interaction with door entry systems. Ideal for use in apartment complexes, office buildings, and villas, this indoor station offers remote door unlocking, optional 2.4GHz Wi-Fi connectivity, and multiple alarm interfaces, delivering dependable security and convenient control at your fingertips.

Product Features

7-inch color touchscreen display

The i504W is equipped with a 7-inch capacitive touchscreen display with a 1024 x 600 resolution, providing a clear and responsive interface for video communication and system control.

HD audio with noise cancellation

Utilizing advanced audio codecs such as G.722 and Opus, the indoor station delivers crystal-clear, full-duplex communication, significantly reducing background noise for more effective conversations.

High-definition video decoding

Supports H.264 and optionally H.265 video codecs with resolutions up to 1080p at 30 frames per second, ensuring sharp and smooth video streams during video intercom calls.

Flexible networking options

The device includes a 10/100Mbps Ethernet port for stable network connectivity and offers optional 2.4GHz Wi-Fi support for wireless installations.

Integrated access control and alarm features

With 8 configurable alarm input interfaces, 1 short circuit input, and 1 short circuit output, the i504W supports integration with third-party alarm and door control systems for enhanced security automation.

Reliable power options

The device supports both 12V DC (1A) and Power over Ethernet (PoE), allowing for flexible and simplified power management during installation.

Wall-mounted design

Designed for wall-mounting, the i504W is easy to install in both residential and commercial environments, blending functionality with space-saving design.

Product Specifications

• Display: 7-inch capacitive touchscreen, 1024 x 600 resolution
• Operating system: Linux
• Panel material: Plastic
• Audio codecs: G.722, Opus
• Video decoding: H.264 (default), H.265 (optional), up to 1080p at 30fps
• Network interface: 1 x 10/100Mbps Ethernet port
• Wi-Fi: 2.4GHz (optional)
• Speaker: 4Ω, 2W
• Power supply: 12V DC (1A) or Power over Ethernet (PoE)
• Alarm input interfaces: 8
• Short circuit output: 1
• Short circuit input: 1
• Operating temperature: -10°C to 45°C
• Operating humidity: 10% to 90% RH (non-condensing)
• Installation: Wall-mounted
