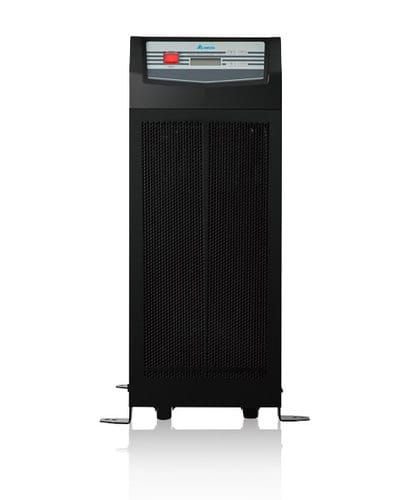

Delta Ultron EH-10kVA 3:1 Phase On-Line UPS, GES103EH320035

The Delta Ultron EH-10kVA 3:1 Phase On-Line UPS (GES103EH320035) is a high-performance uninterruptible power supply system designed to provide reliable and clean power to critical equipment and applications. Ideal for data centers, server rooms, industrial facilities, and other mission-critical environments, it offers advanced features to ensure continuous power protection.

Product Features

• 10kVA Power Capacity
• 3:1 Phase Configuration
• Online Double-Conversion Topology
• Wide Input Voltage Range
• Accurate Frequency Control
• High Efficiency (Up to 95% in Normal Mode)
• Advanced Battery Management

Product Specifications

Specification	Value
Rated Power (VA/W)	10,000 / 9,000
Phase Configuration	3:1 (Three-phase input, single-phase output)
Input Voltage Range	305-478 VAC (without derating)
Frequency (Input)	50/60Hz ± 10% (auto-sensing)
Power Factor (Input)	> 0.99 (at full load)
Current Harmonic Distortion Factor	< 3%
Input Connections	Terminal block or hardwired
Power Factor (Output)	0.9
Voltage (Output)	220/230/240 VAC (configurable)
Frequency (Output)	50/60Hz ± 0.2% (battery mode)
Voltage THD (Output)	< 2% (linear load)
Efficiency (Normal Mode)	Up to 95%
Battery Type	Sealed lead-acid or lithium-ion (configurable)
Battery Voltage	240 VDC
Charging Current	1-4 A (configurable)
Display	LCD display with intuitive interface
Communication Interfaces	RS-232, USB, RS-485, SNMP, AS-400, and dry contacts
Dimensions (W × D × H), mm	260 x 620 x 717
Weight, kg	82
Ambient Operating Temperature	0~40°C
Relative Humidity of the Environment	0 ~ 95% (non-condensing)
