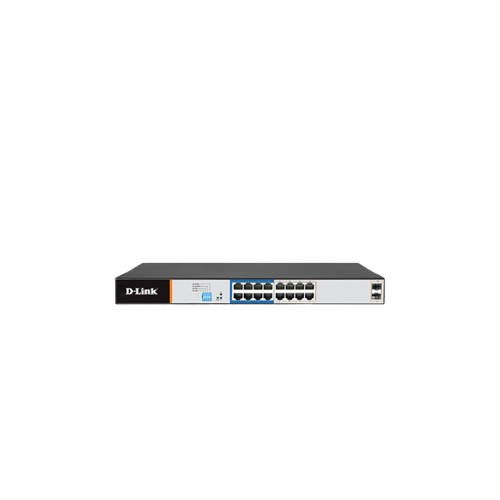

D-Link DES-F1016P-E/B 16-Port Fast Ethernet Unmanaged Long Range 250m PoE+ Surveillance Switch

The D-Link DES-F1016P-E/B is a high-performance, 16-port Fast Ethernet PoE+ switch built for surveillance, small office networks, and long-distance PoE applications. Designed for easy deployment, it provides seamless power and data transmission to PoE-enabled devices such as IP cameras and wireless access points, making it an ideal choice for businesses in Kenya and beyond.

With 16 Fast Ethernet PoE ports and a Gigabit Combo uplink (RJ45/SFP), this unmanaged switch delivers extended 250-meter PoE reach, intelligent power management, and total PoE budget of 150 watts. It offers plug-and-play installation, robust reliability, and energy-efficient performance—perfect for security systems, remote deployments, and simplified cable setups.

Product Features

16 Fast Ethernet PoE+ Ports

Each 10/100 Mbps port supports IEEE 802.3af/at standards, delivering up to 30W per port for devices such as IP cameras, access points, and VoIP phones.

1 Gigabit Combo Uplink (RJ45/SFP)

High-speed uplink with flexibility to use either copper or fiber connectivity for backbone or router connections.

Long Range PoE – Up to 250m

Supports extended-distance PoE transmission—up to 250 meters—ideal for surveillance deployments in large buildings or outdoor areas.

150W Total PoE Power Budget

Provides sufficient power to run multiple PoE devices simultaneously without the need for external power sources.

Plug-and-Play Installation

Simple setup with no configuration required. All ports support auto-negotiation and auto MDI/MDI-X for hassle-free deployment.

Flow Control & Data Protection

IEEE 802.3x Flow Control ensures reliable data delivery by preventing packet loss during congestion.

Durable Design for Reliable Operation

Built with business environments in mind, the switch operates without fans and is ideal for noise-sensitive indoor use.

Product Specifications

• Model: D-Link DES-F1016P-E/B
• Total Ports: 16 x 10/100 Mbps PoE ports + 1 x Gigabit Combo uplink (RJ45/SFP)
• PoE Standard: IEEE 802.3af / IEEE 802.3at
• PoE Power Budget: 150W total
• PoE Range: Up to 250 meters
• Switching Capacity: 7.2 Gbps
• Standards Supported:
  • IEEE 802.3 10BASE-T
  • IEEE 802.3u 100BASE-TX
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3z 1000BASE-X
  • IEEE 802.3af/at PoE
• Flow Control: IEEE 802.3x full-duplex flow control
• Auto MDI/MDI-X: Supported on all ports
• Installation: Plug-and-play
• Max Power Per Port: Up to 30W
• Operating Temperature: 0°C to 40°C
• Mounting Options: Desktop or wall-mountable
