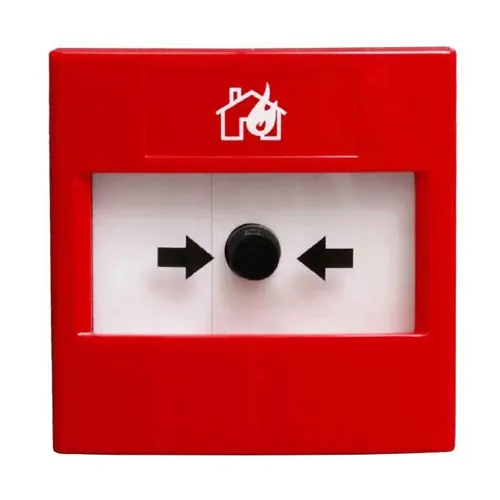

C-Tec CA470 CAST Addressable Manual Call Point for Advanced Fire Alarm Systems

The C-Tec CA470 CAST Addressable Manual Call Point is a premium-quality manual call point designed for use with C-TEC’s XFP and ZFP ‘CAST’ protocol addressable fire panels. Engineered to meet the highest safety standards, it is LPCB certified to EN54 Parts 11 & 17 and Kiwa Telefication certified to EN54-13, ensuring reliable fire alarm activation and system integration. Suitable for both surface and flush mounting, this call point features an onboard short-circuit loop isolator and a smooth-action resettable element that mimics the feel of breaking glass. The device includes a red LED alarm ring for clear visual indication, a photoluminescent window for visibility in low light, and is supplied with a reset/back box removal key and a ‘Not in Use’ label.

Product Features

Certified to International Fire Safety Standards

LPCB certified to EN54 Parts 11 & 17 and Kiwa Telefication certified to EN54-13, guaranteeing compliance with rigorous fire safety regulations.

Compatible with CAST Protocol Panels

Designed specifically for seamless operation with C-TEC’s XFP and ZFP addressable fire panels using the CAST communication protocol.

Surface or Flush Mountable

Offers installation flexibility to suit various building designs and mounting preferences.

Onboard Short-Circuit Loop Isolator

Enhances system reliability by isolating faults within the loop, preventing system-wide failures.

Resettable Smooth-Action Element

Mimics the tactile feedback of breaking glass while allowing easy reset after activation, reducing replacement costs.

Visual Alarm Indication

Red LED alarm ring illuminates the call point face upon activation for clear, immediate status visibility.

Photoluminescent Operating Window

Remains visible for up to five minutes in darkness, aiding quick location during power outages or smoky conditions.

Low Power Consumption

Operates with a typical alarm current of 5mA and a quiescent current of 370µA at 22-40V DC, optimizing energy efficiency.

IP42 Rated with Optional IP67 Version

Standard IP42 protection against dust and water spray; a fully weatherproof IP67 version is available (order code CA47067) for harsh environments.

Multiple Color Options

Available in red, yellow, green, blue, and white to meet diverse signaling needs and site requirements.

Product Specifications

• Certifications: LPCB EN54 Parts 11 & 17, Kiwa EN54-13
• Compatibility: C-TEC XFP & ZFP CAST addressable fire panels
• Mounting: Surface or flush mount
• Loop isolator: Onboard short-circuit isolator
• Resettable element: Smooth-action resettable design
• Alarm indicator: Red LED alarm ring
• Photoluminescence: Up to 5 minutes visibility
• Typical alarm current: 5mA
• Typical quiescent current: 370µA @ 22-40V DC
• Ingress protection: IP42 (IP67 version available)
• Available colors: Red, yellow, green, blue, white
• Accessories included: Reset/back box removal key, ‘Not in Use’ label
